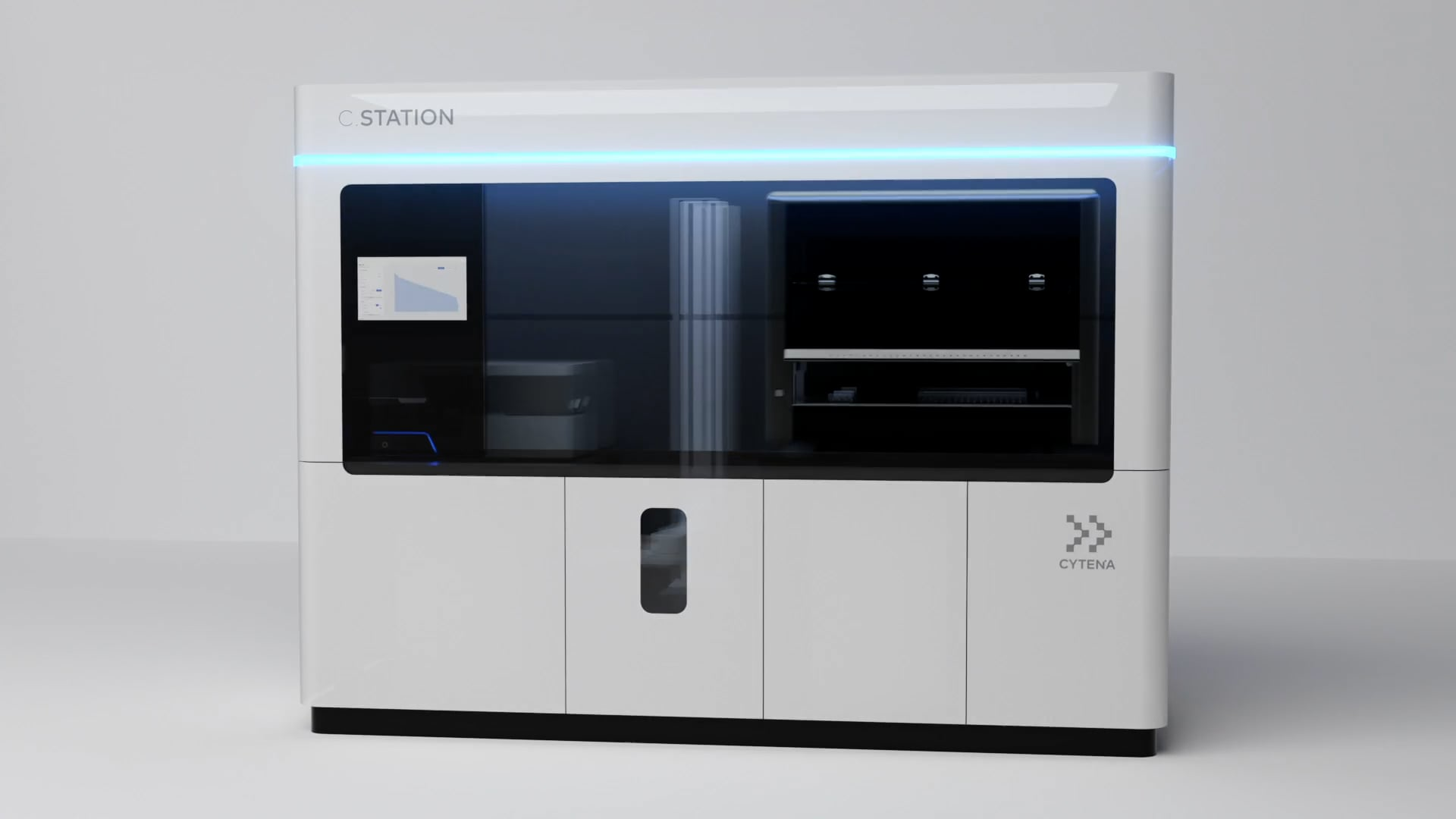

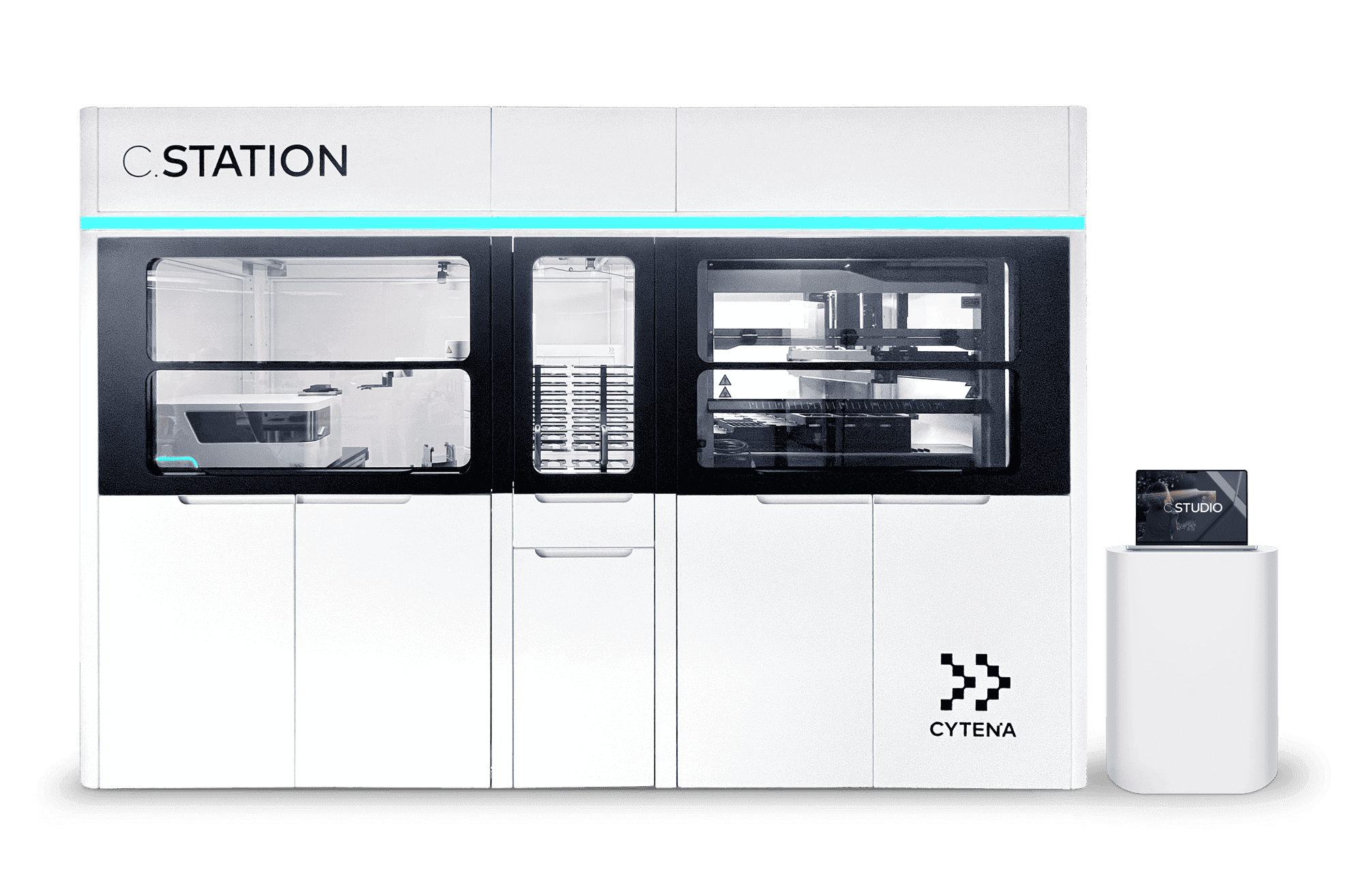

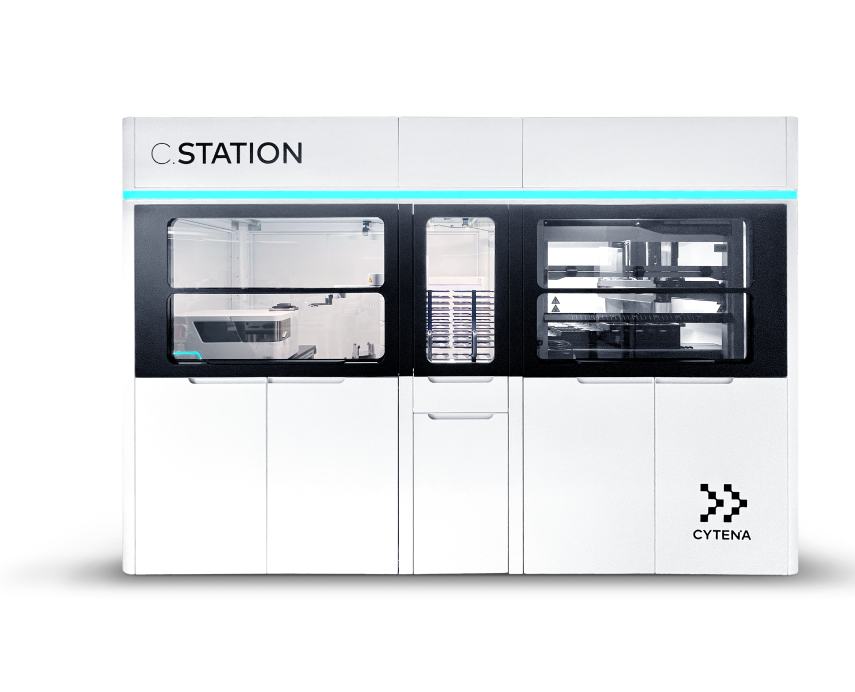

C.STATION Suspension BSL1 |
C.STATION Suspension BSL2 |
C.STATION Adherent BSL2 |
| Biosafety Standard |
Class I according to
NSF/ANSI 49 A2 respect.
BS EN 12469:2000
(product protection)
HEPA H14 filtered intake |
Class II according to NSF/ANSI 49
A2 respect. BS EN 12469:2000
(product and user protection)
HEPA H14 filtered intake and
exhaust 70/30 recirculation
principle with 30% exhausted air |
Class II according to NSF/ANSI 49
A2 respect. BS EN 12469:2000
(product and user protection)
HEPA H14 filtered intake and
exhaust 70/30 recirculation
principle with 30% exhausted air |
| Plate Compatibility |
ANSI SLAS1-2004 (R2012)
without FB module:
up to 6-Well
with FB module:
up to deep-well |
ANSI SLAS1-2004 (R2012)
without FB module:
up to 6-Well
with FB module:
up to deep-well |
ANSI SLAS1-2004 (R2012)
up to 6-Well |
| Fed-Batch Option |
yes |
yes |
no |
| Plate Capacity |
without FB module:
up to 60 plates
with FB module:
up to 44 plates |
without FB module:
up to 60 plates
with FB module:
up to 44 plates |
up to 60 plates |

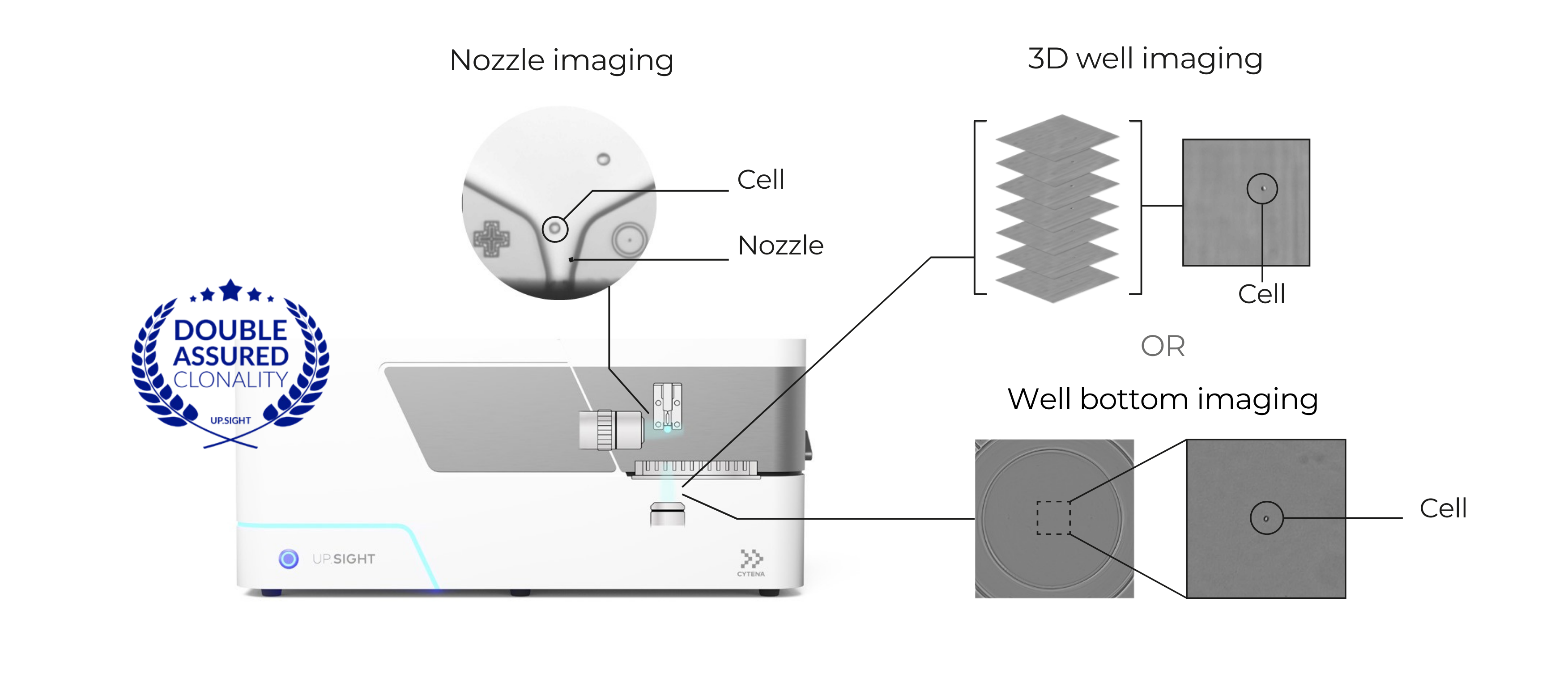

| Cell Sorting |
Cell Morphology and
Fluorescence on CYTENA
UP.SIGHT |
Cell Morphology and
Fluorescence on CYTENA
UP.SIGHT |
Cell Morphology and
Fluorescence on CYTENA
UP.SIGHT |
| Plate Washer |
no |
no |
CYTENA C.WASH |

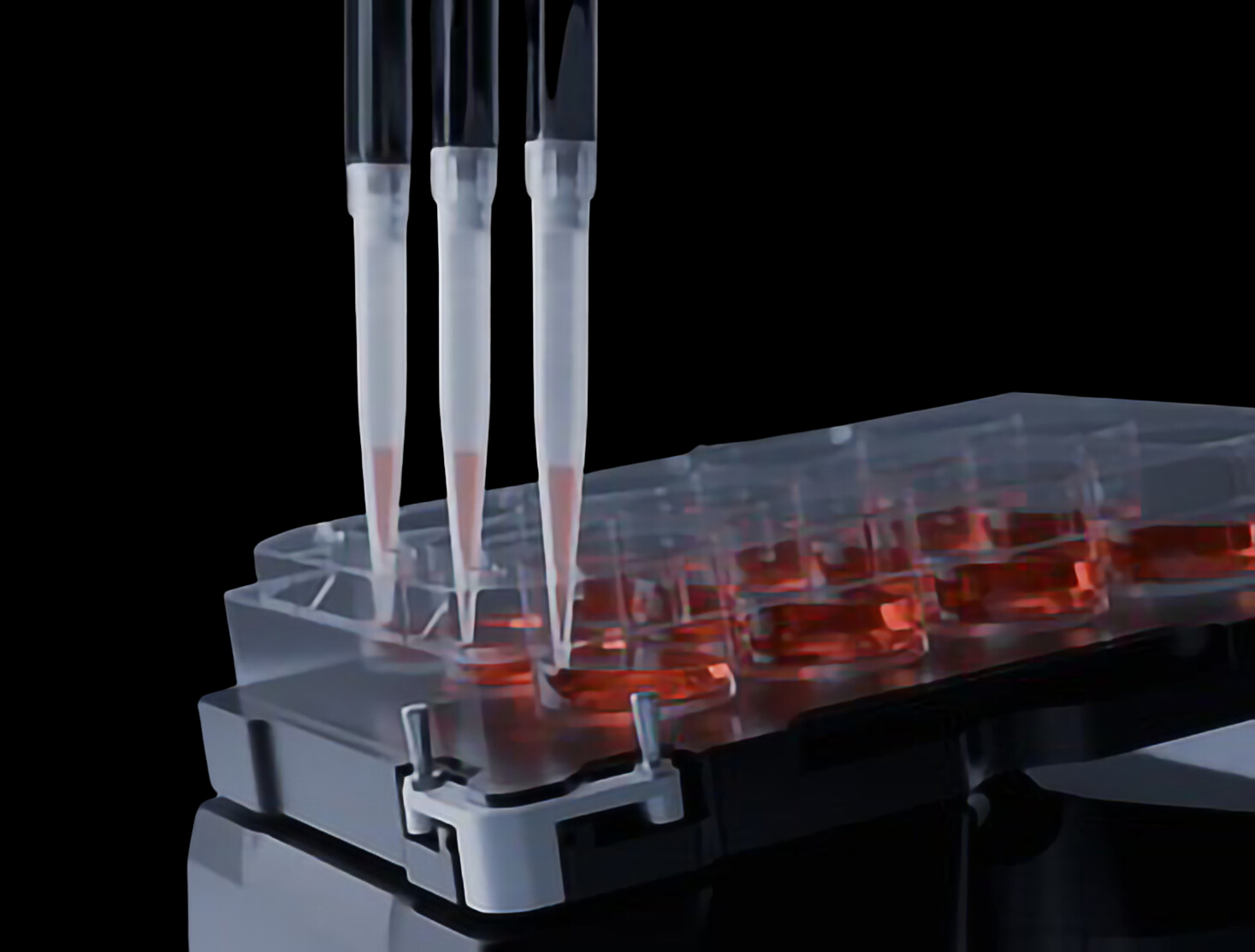

| Liquid Handling |
Hamilton STARlet M |
Hamilton STARlet M |
Hamilton STARlet M
with optional 96-Well head (MPH) |
| Liquid Handling Pipette Tips |
50/300/1000 µL filtered or
unfiltered, capacitive tips *unfiltered 50/300 µL tips
stackable for 4x capacity on deck |
50/300/1000 µL filtered or
unfiltered, capacitive tips *unfiltered 50/300 µL tips
stackable for 4x capacity on deck |
50/300/1000 µL filtered or
unfiltered, capacitive tips *unfiltered 50/300 µL tips
stackable for 4x capacity on deck |
| Liquid Handling Specifications |
Minimum/maximum aspirate
and dispense volume
50 µL tip
300 µL tip
1000 µL tip |
1-1000 µL depending on tip type
@1 µL: 4.0% precision,
5.0% trueness
@50 µL: 0.75% precision,
2.0% trueness
@200 µL: 0.75% precision,
1.0% trueness
@1000 µL: 0.75% precision,
1.0% trueness |
1-1000 µL depending on tip type
@1 µL: 4.0% precision,
5.0% trueness
@50 µL: 0.75% precision,
2.0% trueness
@200 µL: 0.75% precision,
1.0% trueness
@1000 µL: 0.75% precision,
1.0% trueness |
| Liquid Handling Troughput |
Fill one 96-well microtiter plate
with 100 µL samples (new tips
for each sample): 320 s
Aliquot 100 µL to each well
of a 96-well plate, liquid level
detection on aspirate: 35 s |
Fill one 96-well microtiter plate
with 100 µL samples (new tips
for each sample): 320 s
Aliquot 100 µL to each well
of a 96-well plate, liquid level
detection on aspirate: 35 s |
Fill one 96-well microtiter plate
with 100 µL samples (new tips
for each sample): 320 s
Aliquot 100 µL to each well
of a 96-well plate, liquid level
detection on aspirate: 35 s |
| Incubation Temperature |
RT+5 °C to 37 °C
optional cooling:
4°C to 50 °C |
RT+5 °C to 37 °C
optional cooling:
4°C to 50 °C |
RT+5 °C to 37 °C
optional cooling:
4°C to 50 °C |
| Incubation CO₂ |
0-20 Vol% CO₂ |
0-20 Vol% CO₂ |
0-20 Vol% CO₂ |
| Incubation Humidity |
without FB module:
< 95%
with FB module:
< 80% |
without FB module:
< 95%
with FB module:
< 80% |
< 95% |
| Plate Shaking for Assays |
200-3000 rpm, constant
2 mm diameter |
200-3000 rpm, constant
2 mm diameter |
200-3000 rpm, constant
2 mm diameter |

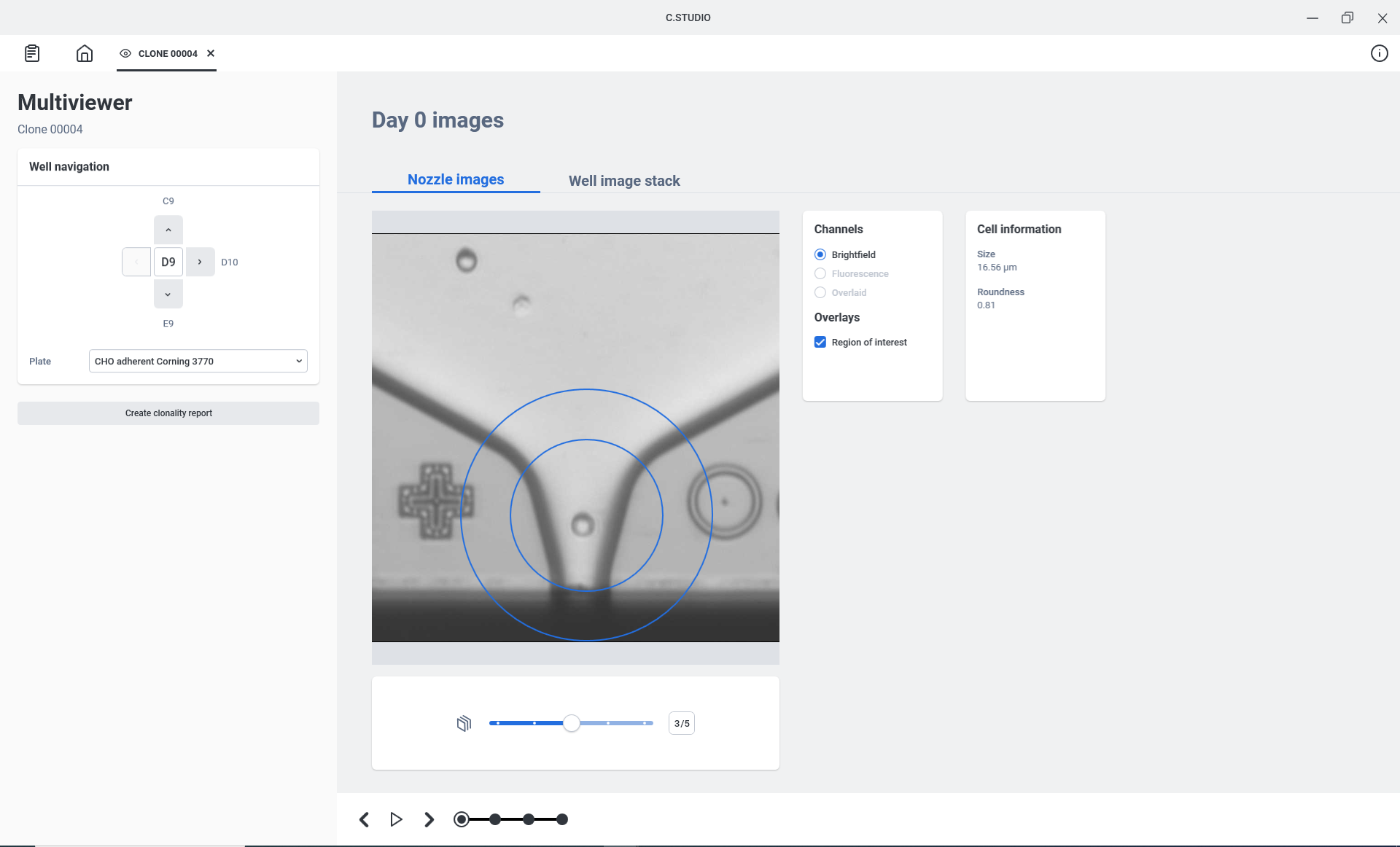

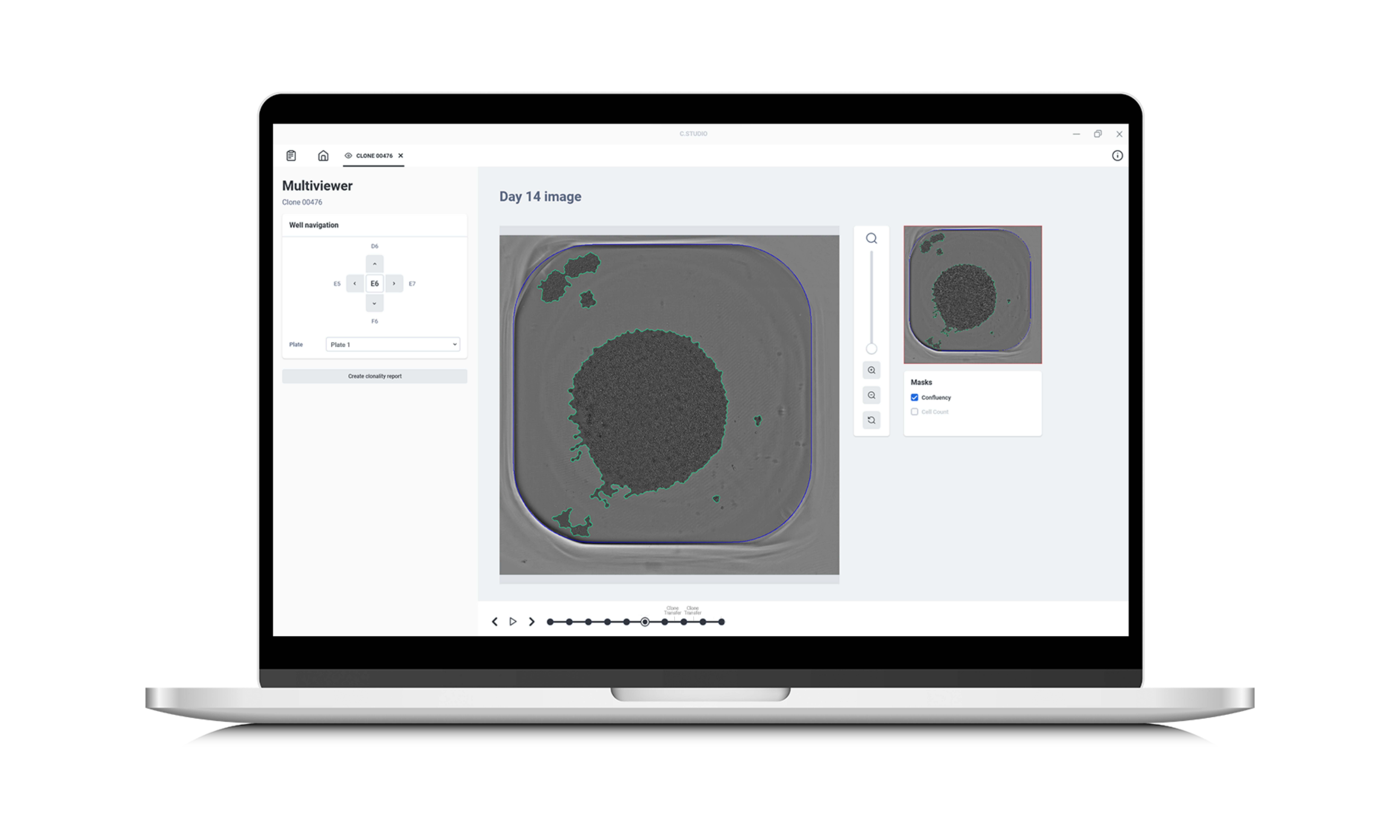

| Software |

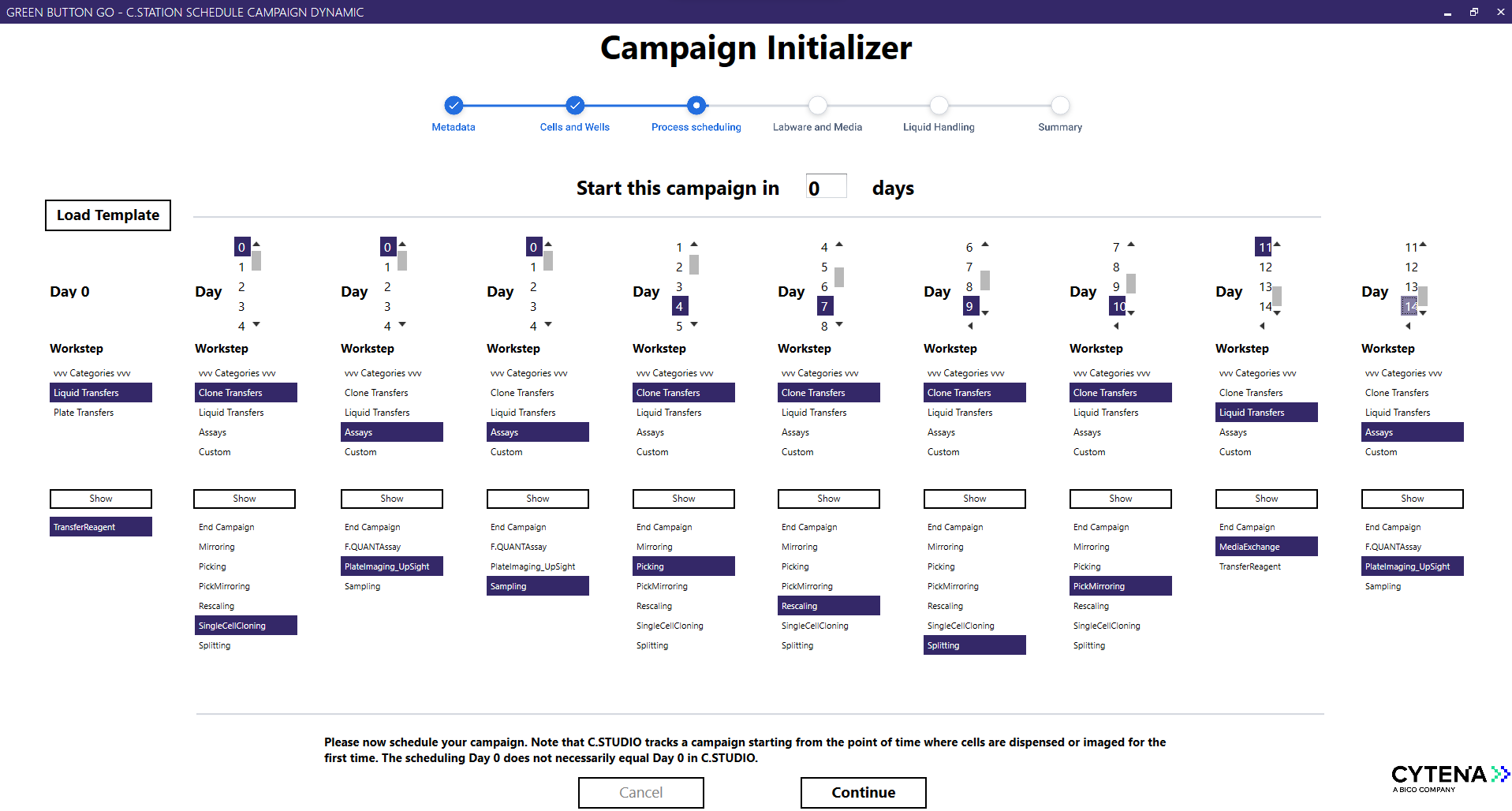

Green Button Go Scheduler,
C.STUDIO (Analysis)
on Windows 11 |
Green Button Go Scheduler,
C.STUDIO (Analysis)
on Windows 11 |
Green Button Go Scheduler,
C.STUDIO (Analysis)
on Windows 11 |
| Computation |
Custom Rack PC |
Custom Rack PC |
Custom Rack PC |

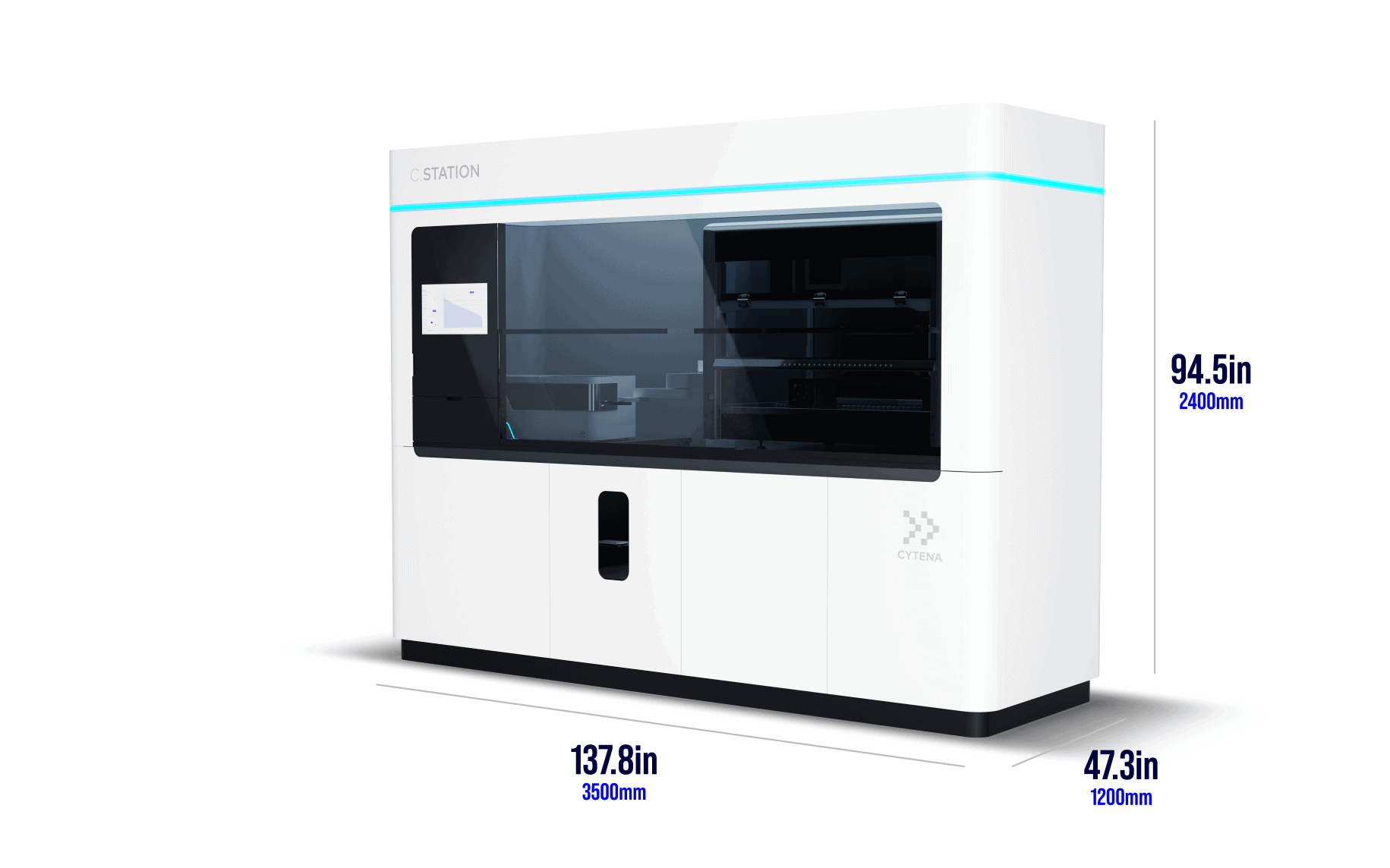

| Dimensions (W x D x H) |
3500 x 1200 x 2400 mm
137.80 x 47.25 x 94.5 in |
4200x1550x2440 mm
165.50 x 61.10 x 96.10 in |
4200x1550x2440 mm
165.50 x 61.10 x 96.10 in |
| Footprint Service Mode (W x D) |
3500 x 2540 mm
137.80 x 100.00 in |
4650 x 2240 mm
183.10 x 88.25 in |
4650 x 2240 mm
183.10 x 88.25 in |
| Weight |
1500 kg
3310 lbs |
2000 kg
4410 lbs |
2000 kg
4410 lbs |
| Area load |
< 400 kg/m²
< 85 lbs/ft² |
< 500 kg/m²
< 105 lbs/ft² |
< 500 kg/m²
< 105 lbs/ft² |
| Power Supply |
400 VAC, 32 A via IEC 60309 6h
(3L+N+PE)
option:
3x individually fused line:
230 VAC, 16 A |
400 VAC, 32 A via IEC 60309 6h
(3L+N+PE)
option:
3x individually fused line:
230 VAC, 16 A |
400 VAC, 32 A via IEC 60309 6h
(3L+N+PE)
option:
3x individually fused line:
230 VAC, 16 A |
| Ambient Conditions |
+15 °C to + 25 °C non-condensing
air (30% – 80% rH) |
+15 °C to + 25 °C non-condensing
air (30% – 80% rH) |
+15 °C to + 25 °C non-condensing
air (30% – 80% rH) |
