C.SIGHT™ 2.0

The C.SIGHT 2.0 is the latest iteration of our single-cell dispensing system designed to optimize cell line development (CLD) applications. With faster single-cell isolation processing times and our new EASY.ON cartridges for contamination-free dispensing, the C.SIGHT 2.0 provides an easy entry point into the world of single-cell handling. The C.SIGHT 2.0’s compact design makes it possible to operate the system in biosafety cabinets, enabling single-cell isolation in sterile conditions.

Join 1,000+ Biopharmaceutical Companies and Academic Institutions

Key Features & Benefits

Find out how our product can enrich your research

Fast and efficient single-cell dispensing

Single cells are gently dispensed into a 96-well plate in under 2 minutes or into a 384-well plate in under 8 minutes.

No risk of contamination

Eliminate the risk of cross contamination during dispensing with single-use EASY.ON cartridges.

Assurance of clonality

Capture nozzle images for every dispensing run to assure that only single cells were dispensed in the plate.

Cell Focusing technology

Align cells at the center of the dispensing cartridge for even better handling and processing of delicate samples.

Easy setup

Begin single-cell isolation in minutes thanks to the C.SIGHT 2.0’s straightforward software.

Compact design

Place the C.SIGHT 2.0 in laminar flow hoods to isolate cells in a sterile environment.

Product Details

Discover what you can do

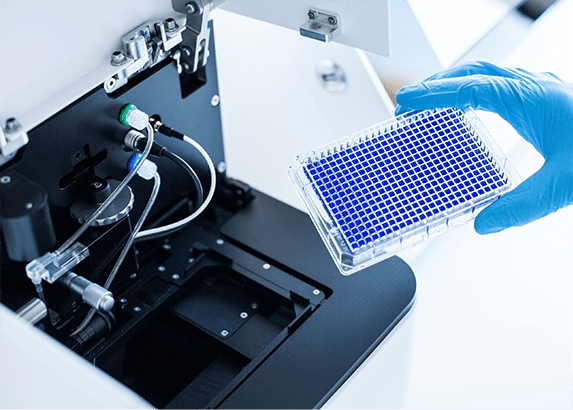

Fast and precise dispensing
The C.SIGHT 2.0 isolates single cells in either 96- or 384-well plates quickly, dispensing an entire 384-well plate in under 7 minutes. The system’s versatility enables a multitude of different cells to be isolated.

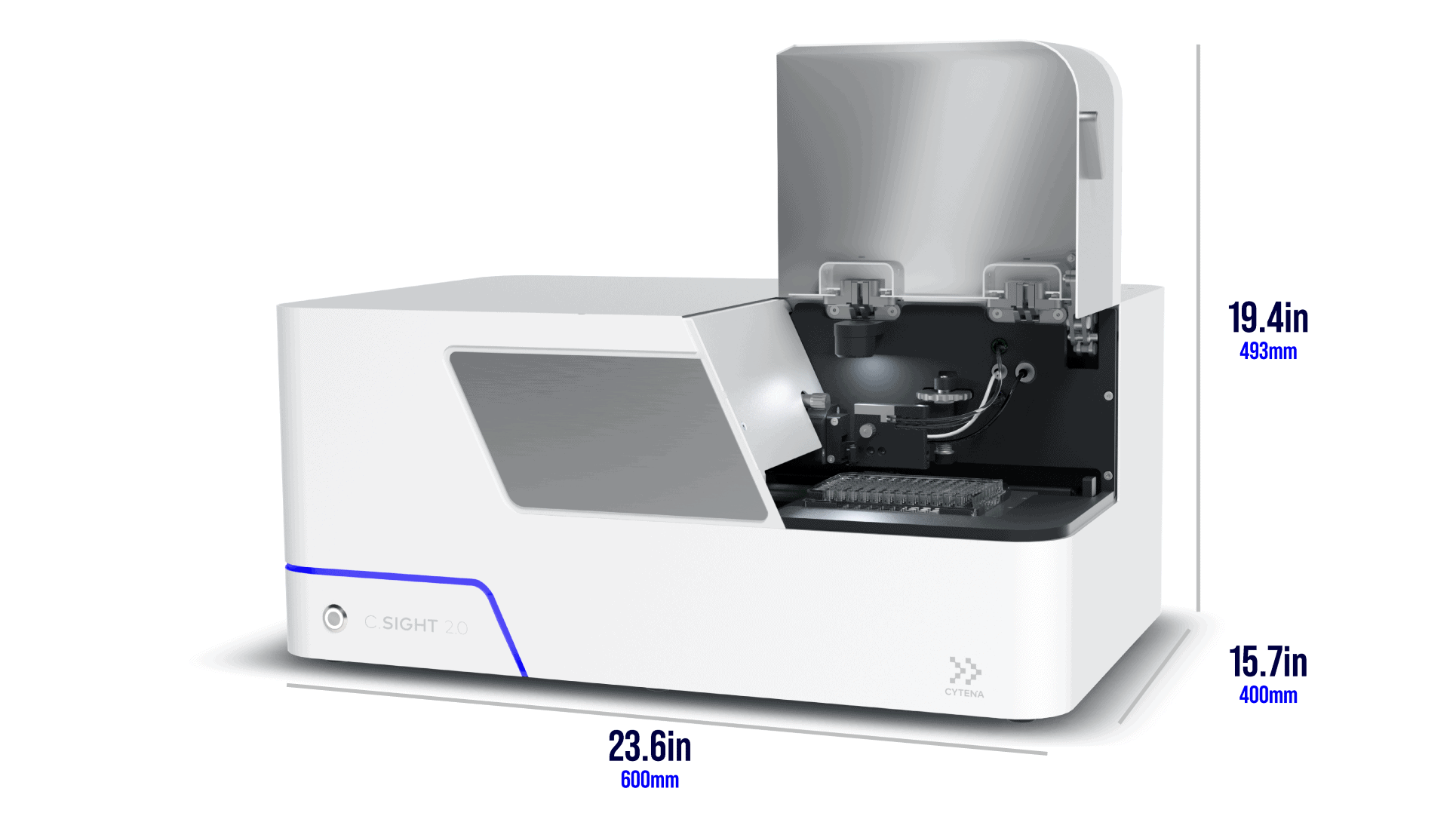

Small footprint
Thanks to the C.SIGHT 2.0’s compact size, the device can be place inside most biosafety cabinets and connected to external control terminals, making the system’s cutting-edge technology accessible to labs of any size.
Minimizing cell loss
Add an additional layer of optimization with our patented Cell Focusing technology, which gently aligns cells at the center of the dispensing cartridge for superior cell detection. It offers significant improvements when working with rare cell types as this alignment ensures that cells are perfectly captured and measured, reducing cell loss and even increasing processing speeds.
Powerful software
Following CYTENA’s customer-oriented philosophy, the software has been designed for easy use and quick setup of individual experiments. All isolation events are recorded and imaged in full resolution, and all images are saved for future analysis and assurance of clonality.
Automation ready
The C.SIGHT 2.0 can be easily integrated into automated workflows, making it the fastest single-cell dispenser fully compatible with robotic automation.

Product
Applications

Accelerate your research

Cell line development

iPSC isolation for clonal culture

Cell therapy

Gene therapy

Single-cell multiomics

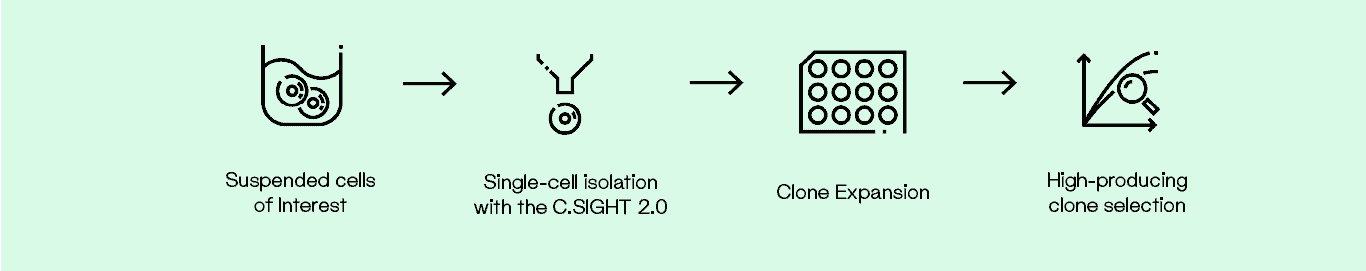

Featured Workflow

The C.SIGHT 2.0 gently dispenses single cells înto 96- or 384-well plates. Clones of interest are then expanded and the highest producng clones are selected for downstream cell-based assays or antibody production.

Download Application Notes

For scientists by scientists, these notes highlight novel ways to optimize
your research with our products and solutions
No Posts Found.

Product Datasheet

SamplesEukaryotic cells
Cell size5 – 40 µm
SortingCell morphology
Droplet volume~200 pL
Substrate96- and 384-well plates
Nozzle imagingCamera CMOS
Magnification 10x
Processing times Single-cell dispensing 96-well plate: ~ 2 min
Single-cell dispensing 384-well plate: ~ 8 min
CartridgeEASY.ON 40 µm disposable cartridge to avoid cross-contamination
AutomationLid opening and closing
Compatible with standard automation arm and gripper
Compatible with third-party automation clients
Embedded computerWindows
CompatibilityStandard biosafety cabinets class 2

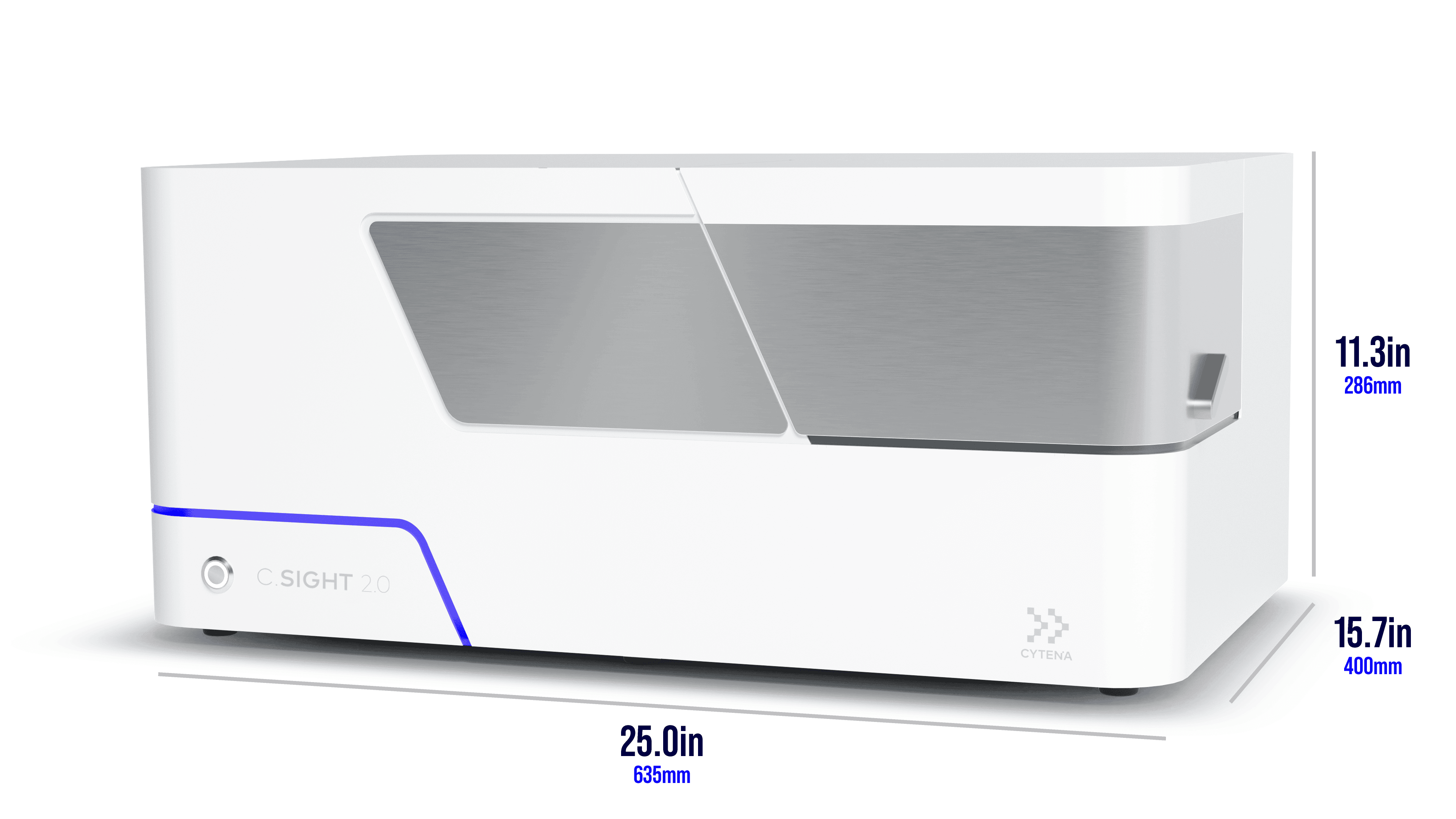

Footprint635 x 400 x 286 mm
Weight40kg
CertificationCE, CB, UL (TÜV), RoHS
