C.NEST™

Streamline the path from culture to discovery with this state-of-the-art microbioreactor
Request Pricing
Access Product Brochure

Join 1,000+ Biopharmaceutical Companies and Academic Institutions

Key Features & Benefits

Find out how our product can enrich your research

High-throughput cultivation

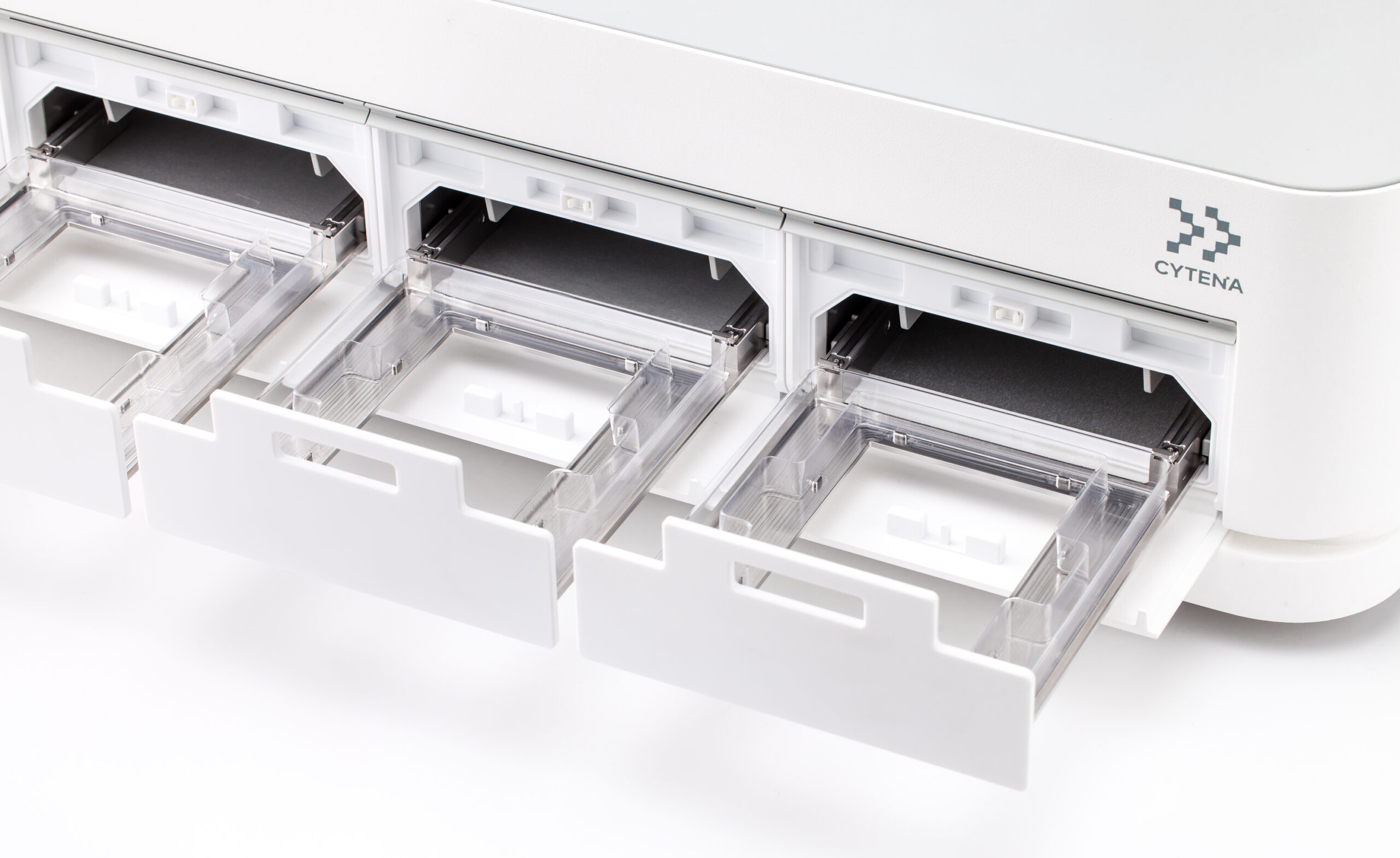

Independent incubation chamber that can perform up to eight plates of static culture or up to four plates of mixing culture

Optimized environment

Independent control of temperature and CO² levels, humidity monitoring, and UV sterilization

Outstanding flexibility

Multiple culture conditions are available by combining static and mixing environments

Intuitive
software

User-friendly interface that is accessible for all levels of experience

Upscalable
design

Customizable capacity and throughput for multi-user solutions

Automation
friendly

Fully mechanized and can be integrated with robotic arms

Product Details

Discover what you can do
The power of mixing
The C.NEST system is able to carry out reciprocating mixing, which creates optimized and variable conditions, expanding the system’s range of application areas. The tubes connected to the lid also provide cells continuous oxygen supply to maintain a healthy environment.
Flexible solution
The C.NEST system can be used for static culture, mixing culture and a combination of the two simultaneously thanks to the ability to independently control both the hardware and software.
Unlimited possibilities
Other analysis like enzymatic assays, activity assessment and several steps in ELISA can be performed simultaneously without interference from other experiments.
Upscalable design
Customization of capacity and throughput is available for the C.NEST to increase efficiency and productivity.

Product
Applications

Accelerate your research

Cell line development

Drug screening

Single-cell workflow

3D cell models

High-throughput cell culture research

Featured Workflow

Download Application Notes

For scientists by scientists, these notes highlight novel ways to optimize
your research with our products and solutions
No Posts Found.

Product Datasheet

Working volume (24-well format) 1000 – 1600 μL
Working volume (96-well format) 150-200 μL
Working volume (384-well format) 25-80 μL
Mixing rate (24-well format) 10 – 50 seconds (± 5%)
Mixing rate (96-well format) 10 – 50 seconds (± 5%)
Temperature Control RT+5 – 45 °C (± 0.2 °C)
CO2 level control 1 – 20% (± 0.3%)
Humidity Monitoring (at 37°C) 0 – 100% (± 5%)
Footprint (WxDxH) 750 x 460 x 180 mm
Weight 25 kg
Input voltage 100-240 VAC
Input current 1.45-3.53 A
Input fuse type 250 VAC, 16A
Starting from $50,000
